The Hidden Carbon Footprint of Paper Packaging: Manufacturing, Transport, and the UK Advantage

Introduction: The Footprint You're Not Measuring

Your procurement team just approved switching from plastic to paper packaging. Sustainability box: checked. Carbon footprint reduced, right?

Maybe. Or maybe you've just shifted the problem.

A 2023 study by the Carbon Trust found that packaging procurement decisions often focus on material type while ignoring the three factors that frequently matter more for total carbon impact:

1. Where it's manufactured (energy grid carbon intensity)

2. How far it travels (transportation emissions)

3. What happens at end-of-life (recycling vs. landfill vs. incineration)

As a UK-based paper converter, we have a vested interest in this analysis. But the data doesn't lie-and we'll show you the actual numbers so you can make informed decisions rather than assumptions.

Section 1: Understanding Paper Manufacturing Emissions

Breaking Down the Carbon Sources

Paper converting (the transformation of base paper into functional packaging) is relatively low-carbon. The major emissions occur upstream:

Typical Carbon Distribution (Virgin Kraft Paper):

Note: Negative end-of-life value represents carbon credit from recycling displacement of virgin material.

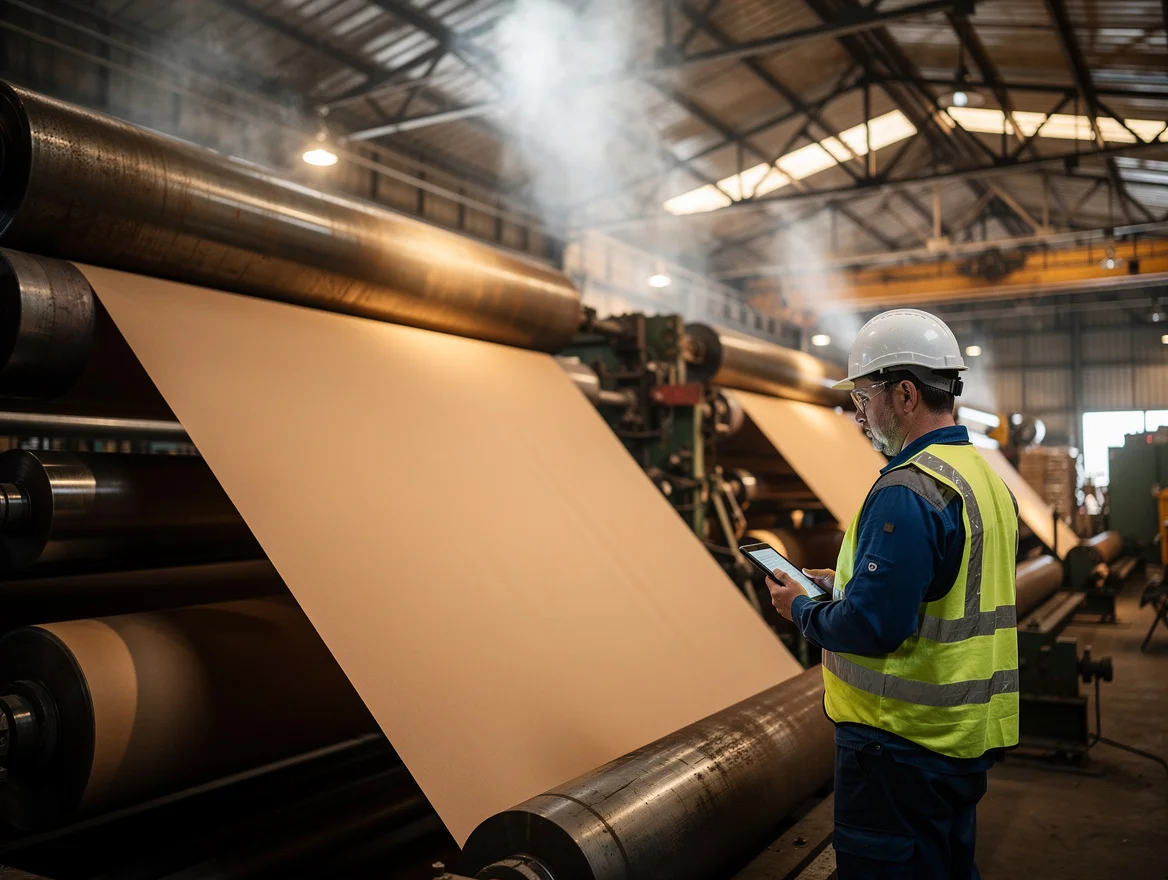

Pulp Production: The Biggest Variable

The pulp production method dramatically affects carbon footprint:

Kraft Process (Most Common for Strong Papers):

• Emissions: 800-1,200 kg CO2e per tonne of pulp

• Energy-intensive but efficient chemical recovery

• Modern mills achieve 50-70% energy self-sufficiency through black liquor combustion

Mechanical Pulping (For Lower-Grade Papers):

• Emissions: 400-600 kg CO2e per tonne

• Lower chemical inputs but higher electricity consumption

• Carbon intensity depends heavily on grid electricity source

Recycled Fiber Processing:

• Emissions: 300-500 kg CO2e per tonne

• Deinking and cleaning processes require energy

• But avoids virgin pulp production emissions

Energy Grid Carbon Intensity: The Geographic Factor

This is where manufacturing location becomes critical:

Grid Carbon Intensity (2024 data):

• UK: ~180 g CO2/kWh (rapidly declining with offshore wind)

• EU Average: ~250 g CO2/kWh (varying by country)

• China: ~550 g CO2/kWh (coal-dominated)

• India: ~700 g CO2/kWh (coal-dominated)

• Nordic Region: ~50 g CO2/kWh (hydro/nuclear/wind)

Paper manufacturing requires approximately 2,000-3,500 kWh per tonne of paper. Grid carbon intensity therefore contributes:

• UK: 360-630 kg CO2e/tonne

• China: 1,100-1,925 kg CO2e/tonne

• Nordic: 100-175 kg CO2e/tonne

Real-World Example: We analyzed identical kraft paper specifications manufactured in three regions:

Before accounting for transportation.

Section 2: Transportation: The Overlooked Multiplier

Modal Emissions Comparison

Transportation mode matters enormously:

Carbon Intensity by Mode (per tonne-kilometer):

• Container Ship: 10-15 g CO2/tonne-km

• Heavy Truck (Euro 6): 60-80 g CO2/tonne-km

• Rail: 20-30 g CO2/tonne-km

• Air Freight: 500-700 g CO2/tonne-km (rarely used for paper)

"Shipping is efficient!" is the common refrain. And per tonne-kilometer, it is. But distances matter:

The Distance Reality

Typical Transportation Distances to UK Customer:

Asian Manufacturing:

• Sea freight: 18,000-22,000 km (Shanghai to Felixstowe)

• UK distribution: 150-300 km by truck

• Total transport carbon: 180-330 kg CO2e + 9-24 kg CO2e = 189-354 kg CO2e/tonne

European Manufacturing:

• Truck: 800-1,200 km

• Total transport carbon: 48-96 kg CO2e/tonne**

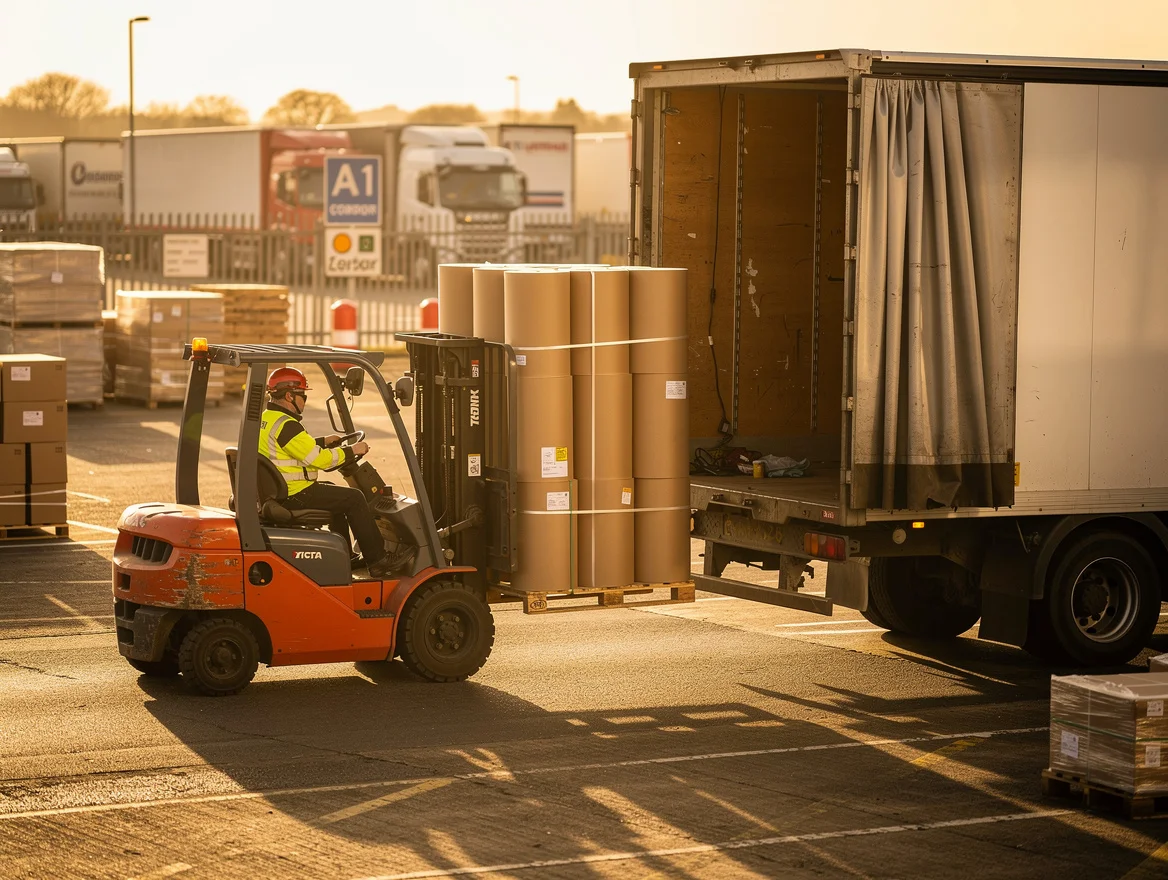

UK Manufacturing (Grantham):

• Truck: 150-300 km average to UK customers

• Total transport carbon: 9-24 kg CO2e/tonne**

Combined Manufacturing + Transport Carbon Footprint:

Difference: Asian sourcing adds 82% more carbon than UK manufacturing for equivalent product.

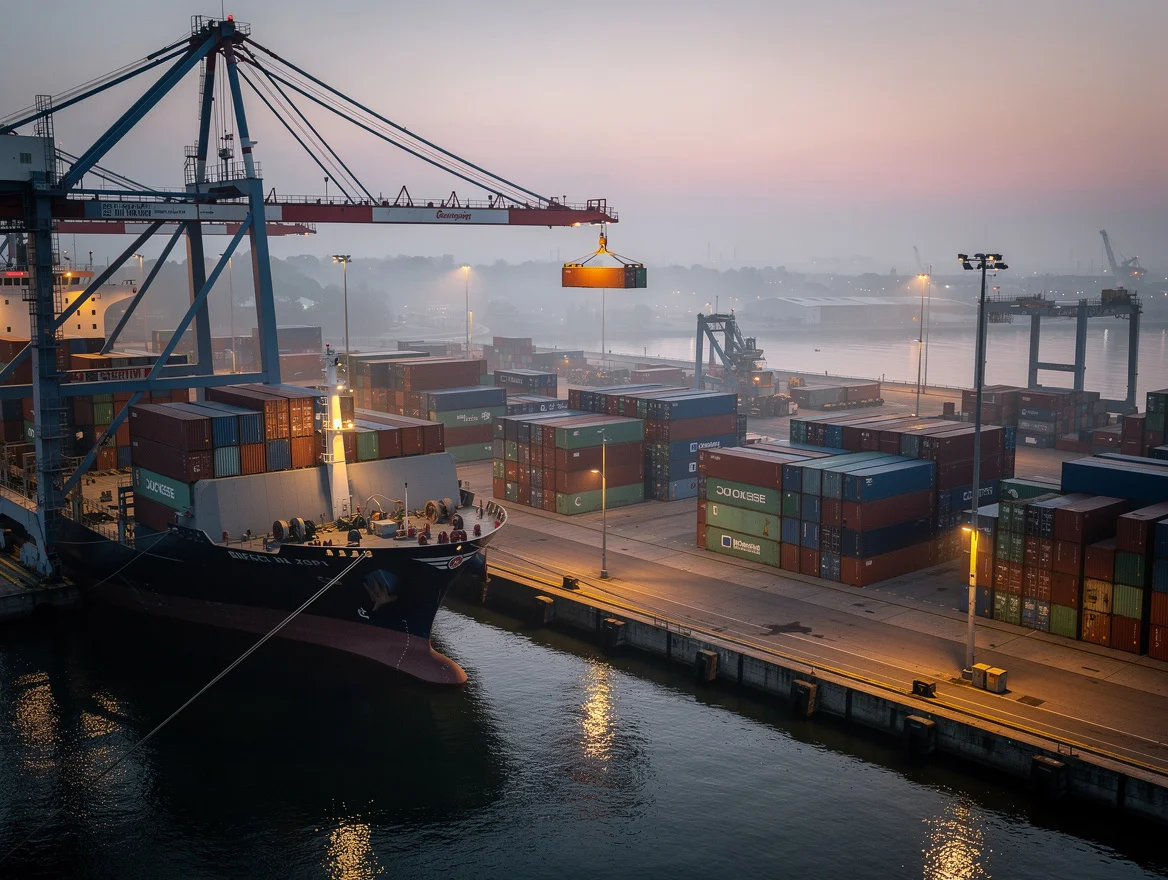

The Container Ship Complexity

Shipping isn't as clean as tonne-kilometer figures suggest:

Additional Factors:

1. Low-quality fuel: Many ships burn heavy fuel oil (bunker fuel) with high sulfur and carbon intensity

2. Port operations: Loading/unloading adds emissions

3. Refrigerated containers: If temperature control needed (rare for paper), emissions double

4. Return journey: Often empty containers return, effectively doubling per-product emissions

IMO 2023 Strategy targets net-zero shipping by 2050, but current fleet will operate for decades.

Section 3: The Coating and Printing Carbon Cost

Wax Coating Energy Requirements

Wax coating requires melting and application, adding energy:

Paraffin Wax Coating:

• Energy: 0.2-0.4 kWh per kg of wax applied

• Typical application: 20-40 g/m² (varies by product)

• For 50gsm base paper with 30g/m² coating: ~0.12-0.25 kWh per kg of finished product

• Carbon impact (UK grid): 22-45 kg CO2e/tonne

Bio-Wax Alternatives:

• Similar energy requirements for application

• But bio-wax production carbon footprint is 30-40% lower than petroleum wax production

• Total lifecycle benefit: ~50-70 kg CO2e/tonne reduction

Silicone Coating

Silicone production is energy-intensive:

• Silicone production: ~6,000-8,000 kg CO2e/tonne of silicone

• Typical application: 1-3 g/m²

• For lightweight paper: adds ~10-30 kg CO2e/tonne finished product

Printing Ink Carbon

Water-based flexographic inks (our standard for food contact):

• Production: ~2,000-3,000 kg CO2e/tonne of ink

• Typical application: 1-5 g/m² coverage

• Impact on finished product: 2-15 kg CO2e/tonne depending on coverage

Section 4: End-of-Life: Recycling Credits and Reality

The Recycling Carbon Benefit

Paper recycling provides carbon credit through virgin material displacement:

Carbon Savings (per tonne recycled vs. virgin production):

• Avoided pulp production: -400 to -700 kg CO2e

• Recycling processing cost: +300 to +500 kg CO2e

• Net benefit: -100 to -400 kg CO2e per tonne

But: This requires actual recycling, not just "recyclability."

UK Paper Recycling Rates (WRAP, 2023):

• Overall paper: 75% recycled

• Food-contact paper: 55-65% recycled (contamination reduces rate)

• Wax-coated paper: 60-70% recycled (mill-dependent acceptance)

Landfill and Incineration

If Paper Goes to Landfill:

• Anaerobic decomposition produces methane

• Methane has 25x global warming potential of CO2

• Emissions: +200 to +500 kg CO2e per tonne (depending on landfill gas capture)

If Incinerated (with Energy Recovery):

• Paper combustion: +1,000 kg CO2e per tonne

• Energy recovery credit: -300 to -500 kg CO2e

• Net impact: +500 to +700 kg CO2e per tonne

Section 5: The UK Manufacturing Advantage - Deep Dive

Why Grantham Location Matters Specifically

Our facility in Grantham, Lincolnshire provides specific carbon advantages:

1. Grid Electricity Profile Lincolnshire benefits from local offshore wind generation:

• Regional grid carbon intensity: ~150 g CO2/kWh (below UK average)

• Continuing to improve as offshore wind capacity increases

• We source 40% renewable energy through direct PPAs (Power Purchase Agreements)

• Target: 75% renewable by 2028

2. Central UK Location (A1 Corridor)

• 85% of UK population within 200km

• Average customer delivery: 170km

• Reduced distribution emissions vs. port-based facilities

• Consolidated delivery routes reduce per-customer carbon

3. Local Supply Chain Integration

• Base paper sourced from UK and Nordic mills (average 400km transport)

• Coating materials from UK suppliers (average 150km)

• Reduced supply chain complexity and emissions

The Full Lifecycle Comparison

Let's analyze a specific product: 50gsm bleached kraft paper with 25g/m² wax coating, printed one side.

Scenario A: Imported from China

Scenario B: UK Manufacturing (GML)

Carbon Reduction: 53% lower emissions for UK-manufactured product

Section 6: Future Trends Affecting Carbon Footprint

Carbon Border Adjustment Mechanism (CBAM)

The EU's CBAM (being monitored by UK for potential implementation) will add costs to carbon-intensive imports:

• Phases in 2026-2034

• Targets cement, steel, aluminum, fertilizers, electricity, hydrogen

• Paper products under consideration for phase 2 inclusion

If paper is included, Asian imports could face:

• Additional cost: £40-80 per tonne based on carbon intensity differential

• Compliance reporting requirements

• Potential for UK to implement similar mechanism

Renewable Energy Acceleration

UK Renewable Energy Targets:

• 2030: 95% renewable electricity

• 2035: Fully decarbonized power system

As grid decarbonizes, UK manufacturing advantage will increase:

Projected Manufacturing Carbon (2030):

• UK paper manufacturing: 650-800 kg CO2e/tonne (30-40% reduction)

• China (assuming slower transition): 1,400-1,600 kg CO2e/tonne

Shipping Decarbonization Challenges

Unlike electricity, shipping decarbonization is slower:

• Alternative fuels (ammonia, methanol, hydrogen) still in development

• Fleet replacement cycle: 25-30 years

• Expect shipping emissions to remain significant through 2040

Implication: Transport emissions advantage for UK manufacturing will persist for decades.

Section 7: Practical Decision Framework

When to Prioritize Local Manufacturing

Strong carbon case for UK manufacturing:

1. High-volume, regular orders (transport efficiency optimization limited)

2. Fast-turnaround requirements (air freight alternatives have extreme carbon penalty)

3. Products with functional coatings (coating energy adds to footprint)

4. When company has science-based targets (scope 3 emissions from supply chain matter)

5. Products likely to be recycled (UK recycling infrastructure engagement improves actual rates)

Cases where imports might compete:

1. Ultra-specialized products unavailable in UK (but rare for paper packaging)

2. Extreme price sensitivity overriding sustainability (though CBAM may change this)

3. When European manufacturing offers equivalent profile (though transport still favors UK)

How to Evaluate Supplier Claims

Request carbon footprint data with these specifics:

Required Data Points:

1. Scope 1 & 2 emissions (facility operations)

2. Scope 3 upstream (material sourcing)

3. Transportation emissions with distance assumptions

4. End-of-life assumptions and recycling rate basis

5. Standards used (ISO 14040/14044, PAS 2050)

6. Third-party verification status

Red Flags:

• Generic "carbon neutral" claims without offsets detail

• Recycled content claims without lifecycle analysis

• Missing transportation or end-of-life data

• No methodology specification

• Refusing to share underlying assumptions

Section 8: GML's Carbon Footprint Commitment

Our Measured Baseline

We've completed simplified LCA for our core product categories:

Current Performance (2024 Average):

• Scope 1 & 2 emissions: 185 kg CO2e per tonne of finished product

• Scope 3 upstream: 680 kg CO2e per tonne (paper sourcing)

• Scope 3 downstream: 12 kg CO2e per tonne (UK distribution)

• Total: 877 kg CO2e per tonne delivered to customer

2030 Reduction Targets

Committed Reductions:

Investment Required: £2.8M in renewable energy, process efficiency, and supply chain optimization

Methodology Transparency

We use:

• Standard: PAS 2050 (Product Carbon Footprint)

• Tools: SimaPro software with Ecoinvent database

• Verification: Third-party review by Carbon Trust (2024)

• Reporting: Annual update published on website

Available to Customers:

• Product-specific carbon footprint data sheets

• Comparative analysis vs. imported alternatives

• Supply chain carbon tracking for major accounts

Conclusion: Making Carbon-Informed Decisions

Carbon footprint analysis reveals uncomfortable truths:

1. Material type matters, but so does manufacturing location - often equally

2. Transport emissions are substantial for long-distance supply chains

3. Grid carbon intensity multiplies manufacturing differences

4. End-of-life assumptions must be realistic, not aspirational

5. UK manufacturing has significant and growing carbon advantages

For businesses with genuine carbon reduction targets-not just marketing claims-supply chain geography deserves equal weight with material specification.

The data supports local manufacturing. But beyond our vested interest, the physics and geography simply favor shorter, renewable-energy-powered supply chains over global alternatives.

Your Move: Request lifecycle carbon data from all packaging suppliers. Make decisions on evidence, not assumptions.

Related Articles

• Sustainable Paper Packaging: From Material Sourcing to End-of-Life - the pillar guide for this topic.

• Biodegradability vs. Compostability: What Food Businesses Need to Know - Biodegradable vs compostable - critical differences, EN 13432 standards, coating impact, UK infrastructure reality.

• Beyond Recycling: Designing Paper Packaging for Circular Economy - Design for true circularity - UK EPR, MRF compatibility, contamination tolerance, and recyclability scoring.

• Wax Coatings and Release Agents: Performance vs. Environmental Responsibility - Compare wax and release coatings - paraffin, PE, soy wax, beeswax, silicone - performance, cost, sustainability trade-offs.
