Introduction: The Coating Paradox

Uncoated paper is beautifully simple-100% recyclable, compostable, biodegradable. It also provides almost no protection against moisture, grease, or sticking. For actual food packaging applications, it's usually inadequate.

Enter coatings: the functional necessity that complicates everything about sustainability.

As a paper converter applying coatings for 50+ years, we've witnessed the evolution from simple paraffin wax to today's complex landscape of bio-alternatives, polymer dispersions, and release agents. Each technology involves trade-offs between performance, cost, and environmental impact.

This article provides the technical clarity you need to make informed decisions-because the "just use bio-based" advice often falls apart when you need actual grease resistance at scale.

Section 1: Why Coatings Are Necessary

The Functional Requirements

Paper packaging requires coatings to provide:

Moisture Barriers:

• Prevent water penetration (critical for humid conditions)

• Maintain package integrity during storage/transport

• Applications: Frozen food, fresh meat/fish, deli products

Grease Resistance:

• Prevent oil/fat penetration

• Maintain appearance and handling quality

• Applications: Bakery, fast food, prepared foods

Release Properties:

• Prevent sticking to product or other materials

• Enable easy unwrapping

• Applications: Interleaving, cheese wrap, baking papers

Heat Seal Capability:

• Allow thermal bonding for closures

• Create tamper-evident seals

• Applications: Pouches, bags, wrapped products

Performance Quantification

Standards exist to measure coating performance:

Kit Test (TAPPI T559): Grease resistance

• Scale: 1-12 (higher = more resistant)

• Kit 8: Suitable for dry bakery

• Kit 10: Suitable for fatty foods

• Kit 12: Maximum grease resistance

Cobb Test (ISO 535): Water absorption

• Measures g/m² water absorption in 60 seconds

• <20 g/m²: Good barrier

• <10 g/m²: Excellent barrier

Hercules Size Test (TAPPI T530): Surface sizing

• Measures seconds until ink penetration

• Higher values = better holdout

Section 2: Petroleum-Based Wax Coatings

Paraffin Wax: The Industry Standard

Chemistry:

• Long-chain hydrocarbons (C20-C40)

• Petroleum distillation by-product

• Melting point: 46-68°C (varies by grade)

Application Process:

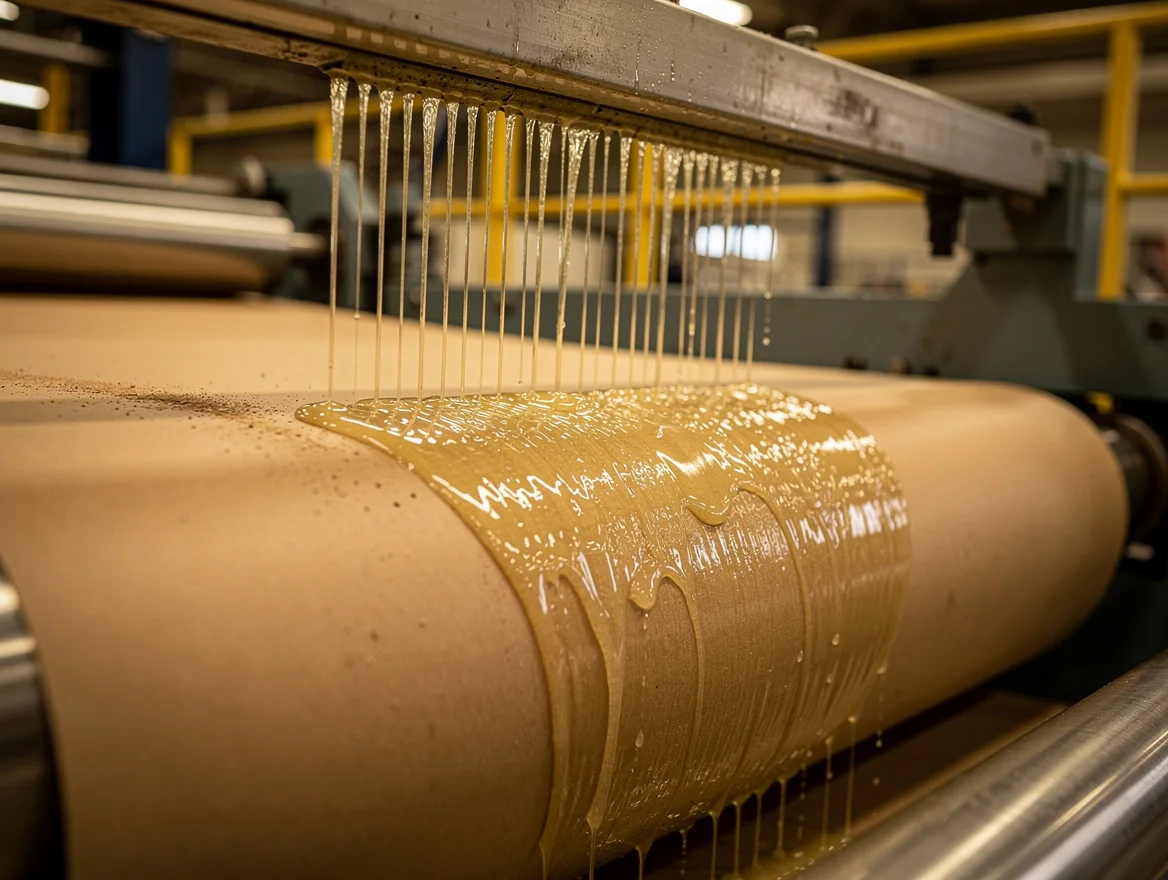

• Melt coating: Molten wax applied via curtain coater or flexographic press

• Typical application: 15-40 g/m² (varies by product requirement)

• Production speed: 50-200 meters/minute

Performance Characteristics:

Strengths:

• Excellent moisture barrier (Cobb <5 g/m²)

• Good grease resistance (Kit 10-11)

• Cost-effective (£1,200-1,600/tonne)

• Established food-safety approvals

• Easy to process/apply

Weaknesses:

• Petroleum-derived (fossil carbon source)

• Non-biodegradable in relevant timeframes

• Complicates recycling (though most UK mills can process)

• Potential cold-crack in extreme conditions

Recyclability Profile:

• Most UK paper mills equipped with wax flotation systems

• Wax removed via hydrapulping + flotation

• Recycling rate for wax-coated paper: 60-70%

• Not EPR "highly recyclable" but achieves "recyclable" classification

Polyethylene (PE) Wax

Chemistry:

• Low molecular weight polyethylene

• Synthesized via polymerization or degradation of high molecular weight PE

• Melting point: 100-115°C

Key Difference from Paraffin: PE wax is technically a plastic. This matters for:

• Plastic Packaging Tax implications (£200/tonne if <30% recycled content)

• EPR classification (may be classified as plastic-coated paper)

• Recycling challenges (PE residues more problematic than paraffin)

Performance:

• Superior heat seal capability vs. paraffin

• Higher melting point (more stable in warm conditions)

• Better flexibility/cold-crack resistance

Cost:

• 20-30% premium vs. paraffin

• Plus potential Plastic Packaging Tax

Our Position: We're phasing out PE wax coatings due to plastic classification issues. Customers requiring high-temperature performance are being transitioned to bio-wax alternatives or aqueous heat-seal coatings.

Section 3: Bio-Based Wax Alternatives

Soy Wax

Chemistry:

• Hydrogenated soybean oil

• Primarily triglycerides and fatty acids

• Melting point: 49-82°C (depending on hydrogenation level)

Sustainability Profile:

• Renewable resource

• Biodegradable (8-16 weeks in industrial composting)

• Can achieve EN 13432 compostability certification

• Lower carbon footprint than petroleum wax (~40% reduction)

Performance vs. Paraffin:

Application Challenges:

Temperature Sensitivity: Soy wax's lower melting point creates issues:

• Softening in warm storage/transport

• Blocking (sticking) risk in stacked products

• Not suitable for hot-fill applications

Real-World Example: Developed soy-wax butcher paper for regional retailer. Summer 2023 (UK heatwave): Product softened in display cases, creating handling issues. Solution required:

1. Formulation adjustment to higher-melting soy-wax blend (+£200/tonne)

2. Storage temperature limits in customer specifications

3. Seasonal product rotation (standard wax for summer, soy for winter)

Beeswax

Chemistry:

• Natural wax produced by honey bees

• Complex mixture of esters, fatty acids, hydrocarbons

• Melting point: 62-65°C

Sustainability Profile:

• Natural, renewable resource

• Biodegradable

• Low processing energy

• Limited scalability (supply constrained)

• Ethical concerns (bee welfare)

Performance:

• Excellent adhesion to paper

• Good moisture resistance

• Pleasant natural aroma (can be advantage or disadvantage)

Cost:

• £4,500-6,000/tonne (3-4x paraffin cost)

• Supply volatility

Applications: Primarily niche/premium:

• Artisan food packaging

• Luxury retail (sustainability story matters)

• Small-batch specialty products

Not Recommended For:

• High-volume applications (cost prohibitive)

• Applications requiring neutral odor

• Temperature-sensitive products

Carnauba and Other Plant Waxes

Carnauba (Palm Wax):

• Hardest natural wax (melting point: 82-86°C)

• Excellent gloss and hardness

• Very expensive (£6,000-8,000/tonne)

• Limited to specialty applications

Candelilla Wax:

• Mexican plant-derived

• Melting point: 68-72°C

• Cost: £3,500-4,500/tonne

• Growing in specialty applications

Section 4: Silicone Release Agents

Polydimethylsiloxane (PDMS) Coatings

Chemistry:

• Silicone polymer backbone (Si-O-Si)

• Extremely low surface energy (provides release)

• Applied at very low weights: 1-3 g/m²

Applications Where Nothing Else Works:

• Baking papers: Release after high-temperature exposure

• Interleaving: Between sticky products (tape rolls, frozen foods)

• Cheese wrap: Prevents sticking to product

• Labels: Where pressure-sensitive adhesive required

Performance:

• Superior release properties (nothing comes close)

• Temperature stable (up to 220°C)

• Very low application weight needed

• No taste or odor

Environmental Challenges:

Non-Biodegradable:

• Silicones persist in environment indefinitely

• Do not break down in composting conditions

• Not suitable for compostable packaging

Recycling Complications:

• Difficult to remove in pulping

• Contaminates recycled fiber (hydrophobic issues)

• Many mills reject silicone-coated paper

• Those that accept often downgrade material quality

EPR Classification: Typically "check locally" or "not yet recycled" due to limited reprocessing infrastructure

Alternative Release Technologies

Stearic Acid Treatment:

• Food-grade fatty acid

• Biodegradable

• Performance: Moderate release (insufficient for most applications)

• Cost-effective

Polylactic Acid (PLA) Coatings:

• Bio-based polymer

• Provides some release properties

• Industrially compostable

• Performance: Inferior to silicone but improving

Mineral Coatings (Kaolin/Calcium Carbonate):

• Combined with wax for release properties

• Fully recyclable

• Performance: Moderate

• Cost: Competitive

Section 5: Aqueous/Dispersion Coatings

Water-Based Alternatives

Chemistry: Polymer dispersions in water:

• Acrylic dispersions

• Styrene-acrylic copolymers

• Modified starch dispersions

• Polyvinyl alcohol (PVOH)

Application:

• Coating rod or blade application

• Water evaporation via heated rollers

• Application weight: 5-15 g/m²

Sustainability Profile:

• Water-based (low VOC)

• Generally recyclable (depends on polymer type)

• Some formulations compostable (starch-based)

• Performance limitations

Performance Characteristics:

When Aqueous Makes Sense:

• Moderate barrier requirements (dry foods, light grease)

• Recyclability is priority

• Willing to accept performance trade-offs

• Premium pricing justifiable

When Aqueous Doesn't Work:

• High grease/moisture exposure (fresh meat, fish, fried foods)

• Extended shelf life in humid conditions

• Applications requiring maximum barrier performance

Section 6: Coating Selection Framework

Decision Matrix

Step 1: Define Functional Requirements

Questions to answer:

1. What barrier properties are needed? (moisture, grease, both)

2. What performance level? (kit test, Cobb value requirements)

3. Temperature exposure range? (storage, transport, use conditions)

4. Contact duration? (days, weeks, months)

5. Regulatory requirements? (food contact certifications)

Step 2: Environmental Priorities

Rank priorities:

• Compostability

• Recyclability

• Bio-based content

• Carbon footprint

• Cost

Step 3: Apply Decision Logic

IF compostability required AND moderate barriers acceptable Bio-wax or starch-based aqueous

IF maximum recyclability required Minimize coating or use aqueous

IF high barriers required AND recyclability important Paraffin wax (compromise position)

IF release properties required AND no alternative works Silicone (accept environmental trade-off)

IF cost-sensitive AND standard barriers Paraffin wax

Testing Protocol

Before committing to coating selection:

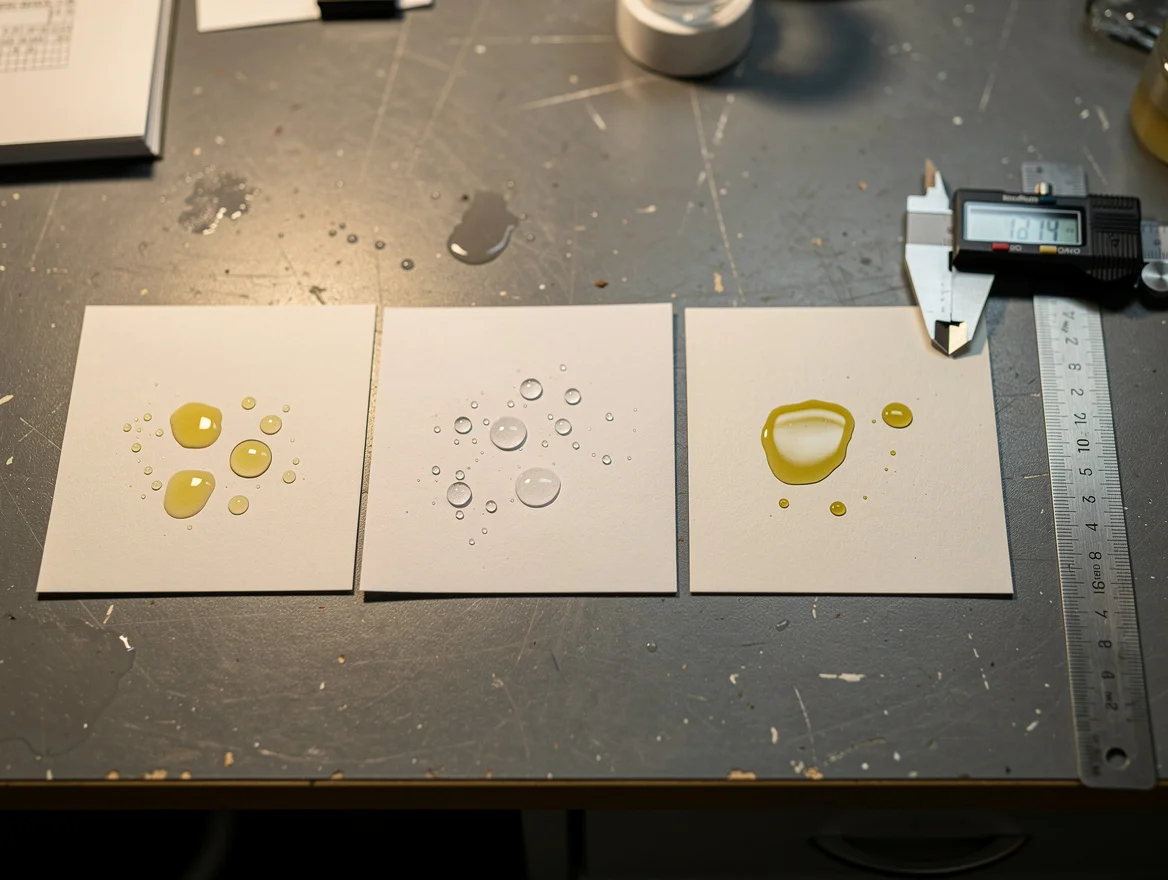

Lab Testing (Week 1-2):

• Kit test for grease resistance

• Cobb test for moisture barrier

• Migration testing for food contact compliance

• Recyclability screening (pulping trial)

Pilot Production (Week 2-3):

• Small batch on production equipment

• Coating weight optimization

• Process parameter refinement

Validation Testing (Week 3-6):

• Accelerated aging

• Temperature cycling

• Actual use conditions simulation

• End-of-life pathway testing (recycling or composting)

Cost: £3,000-8,000 for comprehensive testing program

Section 7: The Cost Reality

Comparative Economics

Coating Cost Breakdown (per tonne finished product, 50gsm paper + 25g/m² coating):

Total Cost of Ownership

Beyond Material Cost:

EPR Fees (annual, for 100 tonnes):

• Paraffin wax: £3,500 (recyclable classification)

• Bio-wax: £2,100 (highly recyclable classification)

• Silicone: £4,900 (check locally classification)

Customer Willingness to Pay:

• Sustainability premium: 5-15% for B2C brands

• No premium: Industrial/B2B applications

• Discount resistance: High-volume retail

ROI Calculation Example:

100 tonnes/year, switching paraffin soy wax:

• Material cost increase: +£25,000

• EPR savings: -£1,400

• Customer premium (10%): +£35,000

• Net benefit: £11,400/year

Payback on validation testing: 3-4 months

Section 8: Future Coating Technologies

Emerging Alternatives

Bacterial Cellulose Barriers:

• Grown by bacteria, not extracted from wood

• Exceptional barrier properties

• Currently: £15,000+/tonne (lab-scale)

• Timeline to commercial: 5-10 years

Chitosan Coatings:

• Derived from shellfish waste

• Antimicrobial properties

• Biodegradable

• Current limitations: Moisture sensitivity

• Timeline: 3-5 years for food applications

Algae-Based Barriers:

• Seaweed extraction

• Renewable, abundant resource

• Performance: Improving rapidly

• Timeline: Available now but expensive (£4,000-6,000/tonne)

Our R&D Investment: We allocate 3% of revenue to coating technology R&D, currently exploring:

• Bio-wax formulation optimization

• Hybrid bio-wax/aqueous systems

• Algae-based alternatives for specialty applications

Conclusion: No Perfect Solutions, Only Informed Trade-offs

After 50+ years applying coatings, we've learned:

1. Every coating has environmental trade-offs

2. Performance requirements are real - compromising functionality isn't always viable

3. Cost matters - especially in price-sensitive markets

4. Testing is essential - assumptions fail in real-world conditions

5. Transparency beats greenwashing - honest about limitations builds trust

Our Recommendations:

For Standard Food Packaging: Paraffin wax remains pragmatic default (recyclable, cost-effective, proven)

For Premium/Sustainability-Focused Brands: Bio-wax worth the premium if performance validated

For Maximum Recyclability: Aqueous coatings where barrier requirements allow

For Release Applications: Minimize silicone where possible, use only when necessary

For Future-Proofing: Watch emerging technologies but don't bet business on them yet

Related Articles

• Sustainable Paper Packaging: From Material Sourcing to End-of-Life - the pillar guide for this topic.

• Biodegradability vs. Compostability: What Food Businesses Need to Know - Biodegradable vs compostable - critical differences, EN 13432 standards, coating impact, UK infrastructure reality.

• The Hidden Carbon Footprint of Paper Packaging - Honest carbon analysis from pulp to delivery - and why UK manufacturing cuts emissions 40-55% vs imported alternatives.

• Beyond Recycling: Designing Paper Packaging for Circular Economy - Design for true circularity - UK EPR, MRF compatibility, contamination tolerance, and recyclability scoring.
